EXTERNAL O-Ring Installation Systems
AIS IS THE WORLD LEADER IN O-RING INSTALLATION
The External Series (ASP’s) O-ring installation machines enhance production and quality by automatically orienting, feeding, and installing O-rings externally with accurate placement. The semiautomatic machines deliver convenient compact benchtop designs with speeds up to 3600 parts per hour depending on operator efficiency. The machines have right or left hand configuration availability that can readily accommodate various O-ring sizes with a simple quick tooling change. The PLC controlled machines can be easily integrated into new or existing automated production lines for horizontal or vertical applications.

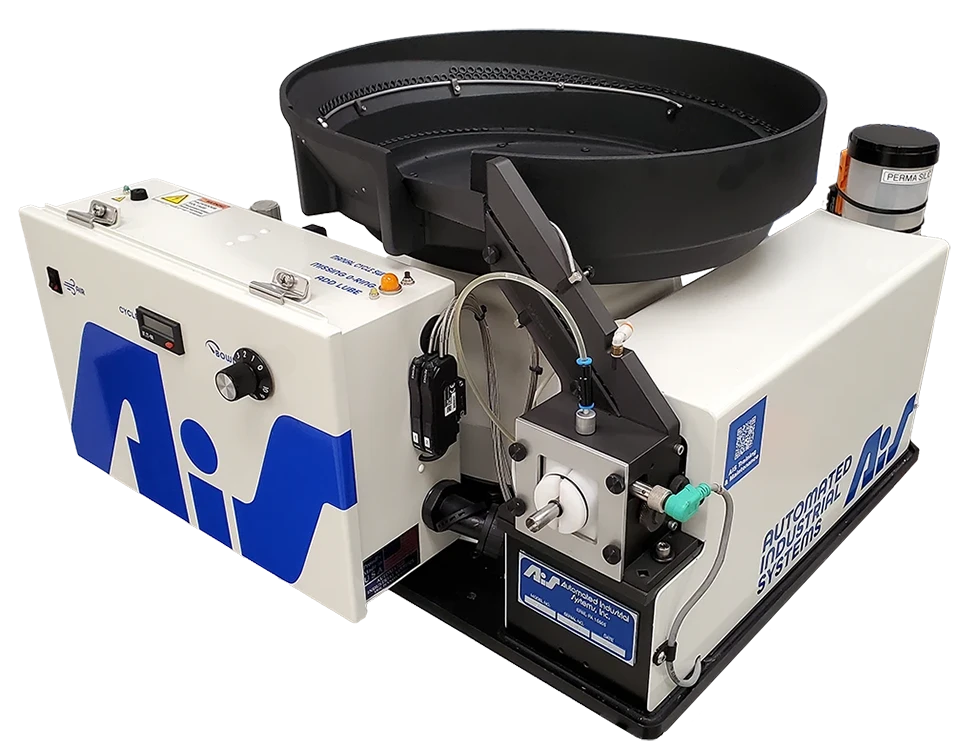

ASP-1 O-ring Installation Machine
- ~Installs seals from 0.056” I.D. to 1.051” I.D. (1.42 mm to 26.70 mm).*
- ~Cycle Rates up to 50-60 per minute.
- ~Less than a 4 square foot platform.
- ~Tooling Change in less than 10 minutes.
ASP-1M O-ring Installation Machine
- ~Installs seals from 0.056” I.D. to 1.051” I.D. (1.42 mm to 26.70 mm).*
- ~Cycle Rates up to 50-60 per minute.
- ~Less than a 2 square foot platform. Compact.
- ~Tooling change in less than 10 minutes.
ASP-1 LV O-Ring Installation Machine
- ~Installs seals from 0.056” I.D. to 1.051” I.D. (1.42 mm to 26.70 mm)*
- ~Less than a 2 square foot platform.
- ~Tooling change in less than 10 minutes.
- ~Improved Ergonomic Design.
ASP-2 O-ring Installation Machine
- ~Installs seals from 1.00” I.D. to 1.864” I.D. (25.4 mm to 47.35 mm).**
- ~Cycle Rates up to 30-45 per minute.
- ~Less than a 5 square foot platform.
- ~Tooling change in less than 10 minutes.
ASP’s w/ Variable Placement Module
- ~Installs seals accurately onto vertically configured parts.
- ~Cycle rates up to 30-40 per minute
- ~90º upward, downward, or 180º outward configuration compatible.
- ~Easy integration into assembly production lines.
