ASP-3
Where the ASP-2 tops out, the ASP-3 takes over.

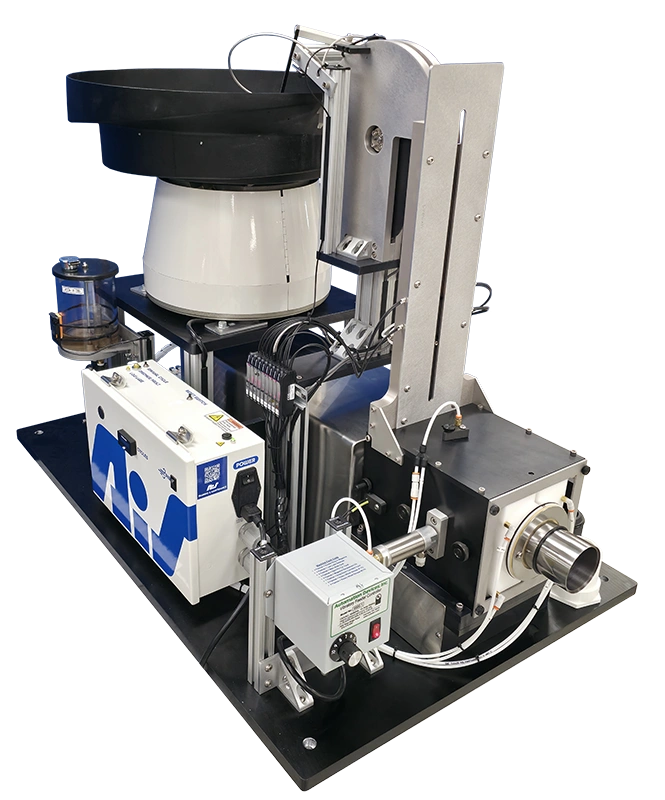

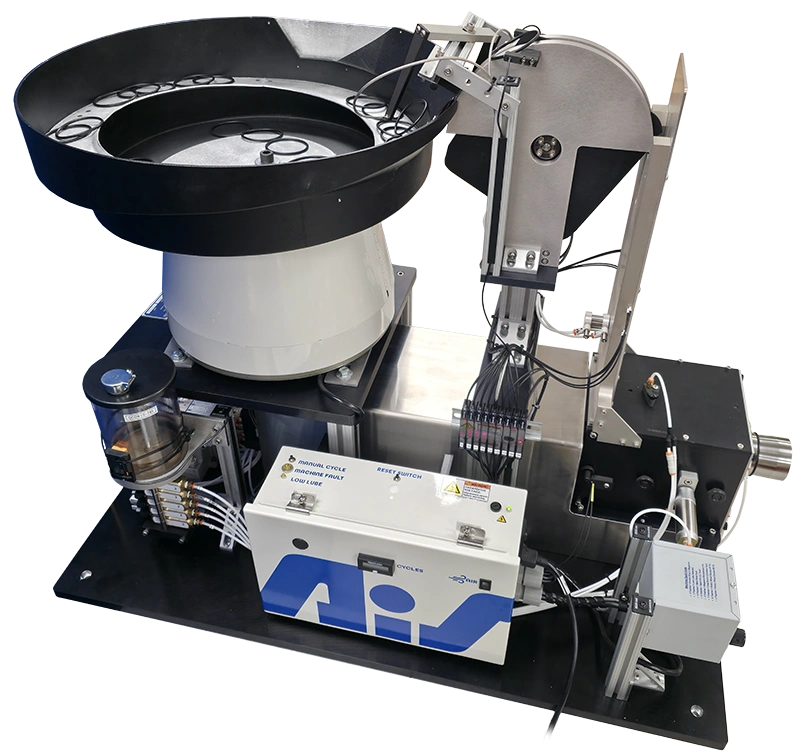

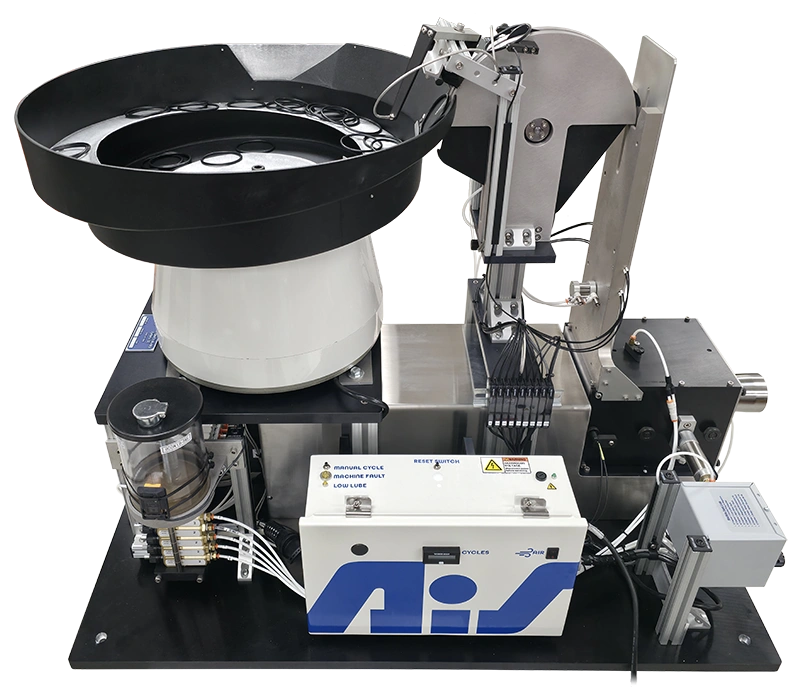

ASP-3 External O-Ring Installation Machine
Where the ASP-2 tops out, the ASP-3 takes over.
The ASP-3 is the newest and largest bench-top external o-ring installation machine in the AIS semi-automated line. It handles external seals from 2.0" O.D. and up, the size range the ASP-1 and ASP-2 can't reach, and it does it consistently, every cycle, however your production environment is set up.
Run it operator-fed. Integrate it into your line. Have AIS build you a complete turnkey system around it. The machine supports all three.
2.0" Starting O.D. | 10-12 Cycles per Minute | 30"x50" Max Footprint
The Problem It Solves
Large O-Ring Installation by Hand Is a Known Problem.
It's slow. It's inconsistent. And one bad installation on a high-value part is an expensive conversation nobody wants to have. The larger the seal, the worse all of this gets, and for a long time, there wasn't a semi-automated machine built to handle seals in this size range.
Now there is.
The ASP-3 brings the same installation consistency that the ASP-1 and ASP-2 deliver for smaller seals, applied to the larger applications those machines can't touch.
Specifications
The ASP-3 is configured to your application. These are the base specifications, contact AIS to discuss your specific seal size, material, and production requirements.
O-Ring O.D. Range: 2.0" and up No fixed upper limit. Practical ceiling depends on o-ring material. Contact AIS to qualify your application.
Cycle Rate: 10–12 per minute Appropriate for large seal installation. The relevant comparison is to hand installation, not to the ASP-1 or ASP-2.
Power & Pneumatics: Standard Same requirements as ASP-1 and ASP-2. No special infrastructure needed.
Seal Types: O-rings, quad rings, lip seals, cup seals, back-up rings Material matters, AIS qualifies each application.
Operation: Operator-fed bench-top or automated line integration
Options: Full suite available
A Note on Cycle Rate
10–12 cycles per minute is the right number for large seal installation, the physics require it. The comparison that matters isn't ASP-3 versus ASP-1. It's ASP-3 versus hand installation on your highest-value parts. On that comparison, the ASP-3 wins on speed, wins on consistency, and eliminates the damage risk that comes with manually handling large seals. Every time.
Where Does the ASP-3 Fit?
The AIS external o-ring installation line now covers the full spectrum of external seal sizes. If it's an external o-ring, there's an AIS machine for it.
|
Model |
O-Ring I.D. Range |
Cycle Rate |
Max Footprint |
|---|---|---|---|
|
ASP-1 |
0.056" – 1.051" I.D. |
50–60 / min |
< 4 sq ft |
|
ASP-2 |
1.00" – 2.0" O.D. |
30–45 / min |
< 5 sq ft |
|
ASP-3 ★ NEW |
2.0" O.D. and up |
10–12 / min |
30" × 50" |
How Do You Want to Run It?
Just a bench-top machine for operator use?
No problem.
Integrating it into your own automated line?
Tell us the specs you need from our machine and we'll build to them.
Need a fully automated turnkey setup?
We'll do that too.
AIS works with customers at every level of automation. Whatever your production environment requires, the conversation starts here.
Configuration Options
The ASP-3 carries the same options menu as the ASP-1 and ASP-2. Configure your machine for your application, your production environment, and your industry requirements.
O-Ring Detection - Verify seal presence before cycling to the next part.

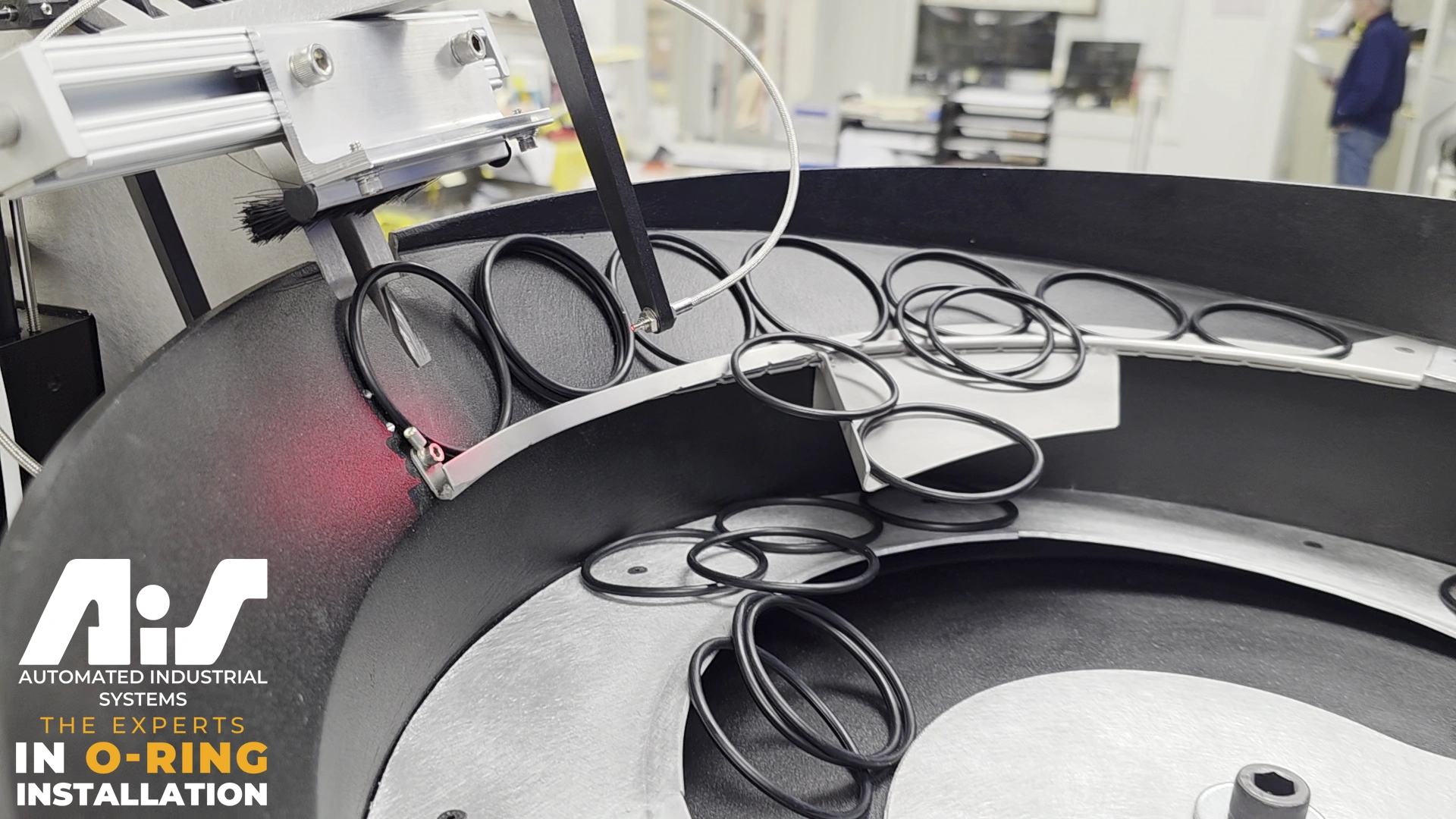

Low Bowl Level Sensor - Alert when the feeder bowl needs reloading.
PLC Expander - Additional I/O for integration with your production line.
Bowl Cover - Keep your feeder bowl clean and protected.
O.D. Lubrication - Automated OD lubrication applied at the machine.
Alcohol Lubrication - For applications requiring alcohol-based lubrication.
Static Elimination Coating - For static-sensitive seals and environments.
Ionizing Fan - Active static elimination for demanding environments.
Work Stand - Ergonomic height-adjustable production stand.
Stainless / Medical Configuration - Clean room capable stainless steel build.
Variable Placement Module (VPM) - Precision placement on complex part geometries.
Built for Production Environments That Can't Afford Inconsistency
The ASP-3 is not industry-specific. Large external o-ring and seal installation is a problem across a lot of industries. If your application involves seals in this size range and manual installation is your current answer, the ASP-3 was built for you.
If Your Application Pushes Past What the ASP-2 Can Handle, We Should Talk.
The ASP-3 is configured to your application. Pricing and lead time depend on your specific requirements. Start the conversation, it costs you nothing.
